G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1480nm |
|
|
|
|
Cable Type |
Fiber Count |
Tubes |
Fillers |
Cable Diameter |
Cable Weight kg/km |
Tensile Strength |
Crush Resistance |
Bending Radius |
|

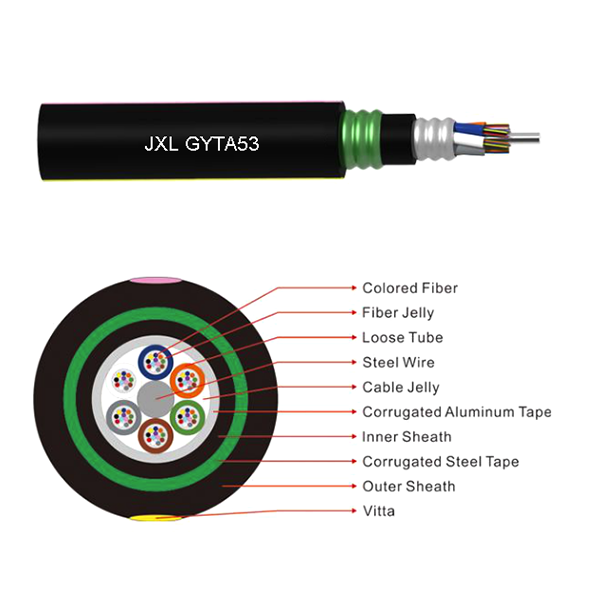

GYTA53-2~6 |
2~6 |
1 |
5 |
14.5 |
209 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-8~12 |
8~12 |
2 |
4 |
14.5 |
209 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-14~18 |
14~18 |
3 |
3 |
14.5 |
209 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-20~24 |
20~24 |
4 |
2 |
14.5 |
209 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-26~30 |
26~30 |
5 |
1 |
14.5 |
209 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-32~36 |
32~36 |
6 |
0 |
14.5 |
209 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-38~48 |
38~48 |
4 |
1 |
15.4 |
234 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-50~60 |
50~60 |
5 |
0 |
15.4 |
234 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-62~72 |
62~72 |
6 |
0 |
15.9 |
244 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-74~84 |
74~84 |
7 |
1 |
18.0 |
297 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-86~96 |
86~96 |
8 |
0 |
18.0 |
297 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-98~108 |
98~108 |
9 |
1 |
19.4 |
338 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-110~120 |
110~120 |
10 |
0 |
19.4 |
338 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-122~132 |
122~132 |
11 |
1 |
21.3 |
392 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-134~144 |
134~144 |
12 |
0 |
21.3 |
392 |
1000/3000 |
1000/3000 |
10D/20D |
|
GYTA53-146~216 |
146~216 |
|
|
21.3 |
395 |
1000/3000 |
1000/3000 |
10D/20D |
