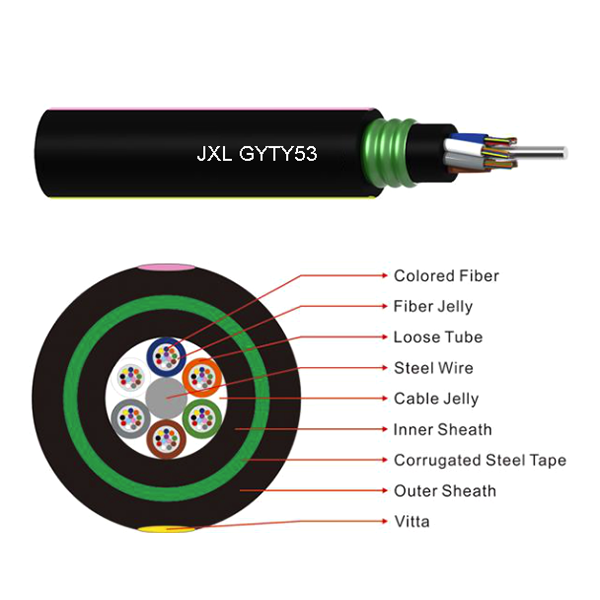

Stranded Loose Tube Armored Cable(GYTY53)
  • Stranded Loose Tube Armored Cable(GYTY53)
  • Stranded Loose Tube Armored Cable(GYTY53)
Stranded Loose Tube Armored Cable(GYTY53)

Hotline:13723481536

Product details
Characteristics
· Good mechanical and temperature performance
· High strength looes tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· The following measures are taken to ensure the cable watertight:
- Steel wire used as the central strength member
- Loose tube filling compound
- 100% cable core filling
- PSP enhancing moisture-proof
- Water-blocking material

Optical Characteristics



G.652

G.655

50/125μm

62.5/125μm

Attenuation
       (+20℃)

@850nm





≤3.0 dB/km

≤3.0 dB/km

@1300nm





≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km





@1550nm

≤0.22 dB/km

≤0.23dB/km





Bandwidth (Class A)

@850nm





≥500 MHz·km

≥200 MHz·km

@1300nm





≥1000 MHz·km

≥600 MHz·km

Numerical Aperture





0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength λcc

≤1260nm

≤1480nm






Technical Parameters

Cable Type

Fiber Count

Tubes

Fillers

Cable Diameter
                 mm

Cable Weight kg/km

Tensile Strength
                 Long/Short Term N

Crush Resistance
                 Long/Short Term
                 N/100mm

Bending Radius
                 Static
                 /Dynamic
                 mm

GYTY53-2~6

2~6

1

5

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-8~12

8~12

2

4

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-14~18

14~18

3

3

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-20~24

20~24

4

2

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-26~30

26~30

5

1

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-32~36

32~36

6

0

13.8

188

1000/3000

1000/3000

10D/20D

GYTY53-38~48

38~48

4

1

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-50~60

50~60

5

0

14.6

206

1000/3000

1000/3000

10D/20D

GYTY53-62~72

62~72

6

0

15.0

215

1000/3000

1000/3000

10D/20D

GYTY53-74~84

74~84

7

1

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-86~96

86~96

8

0

16.4

254

1000/3000

1000/3000

10D/20D

GYTY53-98~108

98~108

9

1

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-110~120

110~120

10

0

17.8

290

1000/3000

1000/3000

10D/20D

GYTY53-122~132

122~132

11

1

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-134~144

134~144

12

0

19.5

340

1000/3000

1000/3000

10D/20D

GYTY53-146~216

146~216





19.5

345

1000/3000

1000/3000

10D/20D
